刀具牌号及适应行业
| 牌号 | 加工方式 | 被加工材料 | 适应行业 |
FBN6100 | 重载粗加工 | ●抗冲击和耐磨损性能优异 ●适合于高硬度合金铸铁、灰铸铁等材料 ●适合高锰钢等材料 | 轧辊、渣浆泵、矿山机械 |
FBN7200 | 粗、精加工 | ●耐磨损性能优异 ●适合于灰铸铁等材料 ●适合于高硬度合金铸铁等材料 | 制动鼓、制动盘、轧辊 |
FBN9000 | 断续粗加工 | ●抗冲击性能优异 ●适合于淬硬钢等材料 ●适合于表面涂覆等材料 | 大型齿轮、回转轴承 |
FBN9300 | 半精、精加工 | ●适合于淬硬钢等材料 | 齿轮、轴承 |
注：●刃口形式可根据客户需求订购

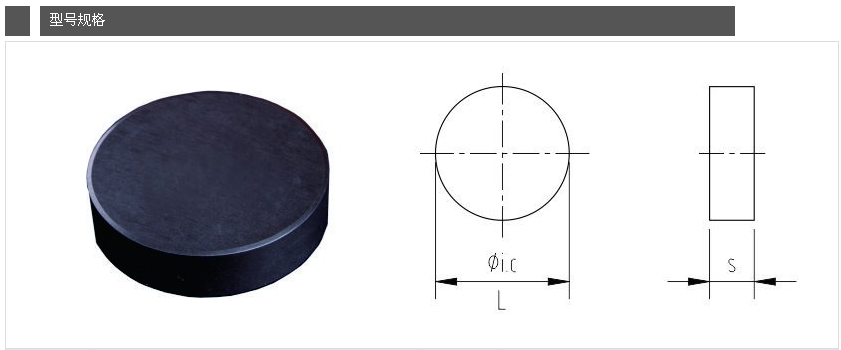

| 型号 | 尺寸 | 标准刃口 | 牌号 | ||||||
| ISO | L | φi.c | s | r | FBN6100 | FBN7200 | FBN9000 | FBN9300 | |
| RMMN060400 | 6 | 6.35 | 4.76 | 0 | T01020 T01025 T02020 T02030 S01020 S01025 S02020 S02030 S05020 S10020 | ● | ● | ● | ● |
| RMMN090300 | 9 | 9.525 | 3.18 | 0 | ● | ● | ● | ● | |
| RMMN90400 | 9 | 9.525 | 4.76 | 0 | ● | ● | ● | ● | |
| RMMN120400 | 12 | 12.7 | 4.76 | 0 | ● | ● | ● | ● | |
| RMMN120600 | 12 | 12.7 | 6.35 | 0 | ● | ● | ● | ● | |
| RMMN120700 | 12 | 12.7 | 7.94 | 0 | ● | ● | ● | ● | |
| RMMN150700 | 15 | 15.875 | 7.94 | 0 | ● | ● | |||
| RMMN160700 | 16 | 16 | 7.94 | 0 | ● | ● | |||
| RMMN190700 | 19 | 19.05 | 7.94 | 0 | ● | ● | |||
| RMMN200700 | 20 | 20 | 7.94 | 0 | ● | ● | |||
| RMMN201000 | 20 | 20 | 10 | 0 | ● | ● | |||
| RMMN250600 | 25 | 25.4 | 6.35 | 0 | ● | ● | |||
| RMMN250700 | 25 | 25.4 | 7.94 | 0 | ● | ● | |||
| RMMN251000 | 25 | 25.4 | 10 | 0 | ● | ● | |||
| RMMN251200 | 25 | 25.4 | 12 | 0 | ● | ● | |||
